GENERAL
NSN : 5985-00-906-1115

COMPONENTS

• ANTENNA ELEMENT AT-1095/VRC (Upper section)
• ANTENNA ELEMENT AS-1730/VRC (Lower section)

FEATURE

•  Wide coverage : Operates over 30 to 76 MHz (30 to 80 MHz) range in 10 band segments
•  Automatic Tuning : Any one of 10 segments automatically selected by a solenoid-driven switch in the matching unit; solenoid is controlled from receiver-transmitter RT-246/VRC or RT-524/VRC, or from amplifier power supply OA-3633/GRC.
• Manual Override : Band segments can be manually selected on the antenna base assembly.

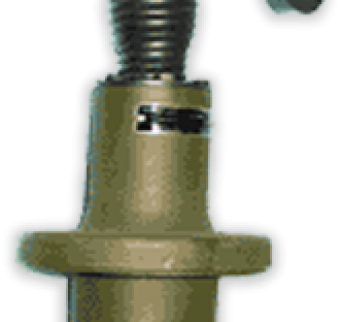

• Reliable : Operates under extreme environmental conditions; meets U.S. military specifications; assures trouble-free communication under severe combat conditions; flexible base spring permits bending and prevents breakage (tie-down kit allows antenna to be bent and tied to vehicle).
